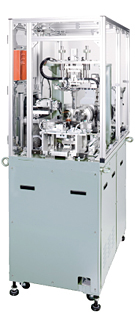

HAM-0150 |
Model | HAM-0150 |
---|---|
Applied core size | Outer dia. : ø75mm- ø130mm
tack height : 20mm-80mm |
Shaft dia. | ø5- ø10mm |
Commutator outer dia. | ø20- ø30mm |
Commutator height | 5-15mm |
No. of slots | Min. 5 slots |
No. of segments | 5-3 times of No. of slots |
Applicable wire size | ø0.1- ø0.8mm |
Flyer rotating speed | Max. 4,000rpm |
No. of control axes. | 7 axes servomotor |
Power supply | AC200V±10% 3-phase 50/60Hz |
Power consumption | Approx. 5KVA |
Air supply | Min. 0.4MPa |
Machine dimensions | 1,100(W)x630(D)x1,600(H)mm |
Machine weight | Approx. 1,000kg |
