Insert Type Coil Winding MachineBSW-100

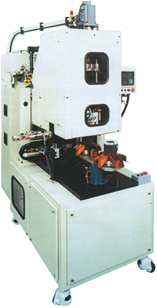

BSW-100 is developed to produce fan motor, motor for washing machine and especially for small motors. The machine drops the wound wire in to the coil transfer tool on the turn table. Wire dropping (transferring) is made directly by the weight of wire.
 |
| BSW-100 |
Features
- 5 axes servo motor control. (Flyer,winding jump,tool index,leads puller (2axes) )
- Possible to save more than 20 specification from touch panel input.
- Set the specification parameter from touch panel. (2 poles,4 poles,6 poles,main coil,sub coil,continues winding,individual winding)
BSW-100
| Model |
BSW-100 |
| No. of winding head |
1 |
| Applicable wire gauge |
ø0.15-1.0mm |
| Winding Speed |
Max. 3,000rpm |
| Flyer track |
SDT ø200mm Max. ø250mm |
| No. of coil step |
Max. 4 steps |
| No. of turntable |
1 |
| Winding counter |
Max. total 999 turns |
| Winding method |
Continuous winding / uncontinous winding |
| Winding direction |
CW/CCW |
| Lead puller |
1 |
| Wire cutter |
1 |
| Power supply |
AC200V±10% 3 phase 50/60Hz |
| Air supply |
Min. 0.5MPa |
| Machine dimensions |
1,600(W)x1,000(D)x2,200(H)mm |
| Machine weight |
Approx. 1,000kg |
